Why is Aluminum Used for Manufacturing Heatsinks?

Efficient thermal management is critical in modern electronics, and the choice of heatsink material directly affects performance, weight, and cost. Engineers know that while copper has higher intrinsic thermal conductivity (~390–400 W/m·K) than aluminum (~205–237 W/m·K), aluminum’s combination of low density, low cost, and ease of manufacturing often makes it the better overall choice. In fact, one industry guide notes aluminum has conductivity up to about 235 W/m·K – second only to copper – but “considering factors such as cost and weight, aluminum provides a more practical option”. Because aluminum is roughly one-third the weight of copper (density ~2.7 vs 8.96 g/cm³), designers can use larger or more fins within the same mass budget, offsetting aluminum’s lower conductivity. As a result, roughly 80% of heat sink projects use aluminum alloys. The sections below explore aluminum’s thermal performance, weight and cost benefits, and manufacturability advantages that make it the heatsink metal of choice.

Thermal Conductivity and Heat Capacity

Aluminum’s thermal conductivity (on the order of 205–237 W/m·K) is very high compared to most engineering materials. Although pure copper (~390–400 W/m·K) conducts heat roughly 60–70% faster than aluminum, many applications can still be cooled effectively with aluminum sinks. For example, one reference lists aluminum at ~205 W/m·K and copper at ~398 W/m·K. The difference can often be compensated by design: aluminum sinks can be made larger or have more fins for the same weight or cost. Moreover, aluminum has nearly double the specific heat capacity of copper on a per-kg basis (about 900 J/kg·K vs 385 J/kg·K). This means a given mass of aluminum can absorb more heat before its temperature rises. In practice, this heat-storage effect and the ability to use more aluminum volume often let aluminum sinks meet thermal targets nearly as well as copper in most systems. In other words, while copper is “better” in pure conductivity, aluminum still provides excellent heat dissipation and can be tuned (by adding fins, heat pipes, etc.) to approach copper’s performance.

For context, practical testing confirms this trade-off. In one case study, an original copper heatsink and a redesigned aluminum heatsink were compared using CFD. The aluminum design (with added copper heat pipes) kept component junction temperatures virtually identical to the copper version – differences were on the order of 1–2 °C on average. Thus, aluminum’s slightly lower conductivity can be overcome by clever design while leveraging its other advantages.

Weight and Density Advantages

One of aluminum’s biggest strengths is its low density. Aluminum alloys used in heatsinks typically weigh only about 2.70 g/cm³, compared to about 8.96 g/cm³ for copper. In practical terms, an aluminum heatsink will weigh roughly one-third as much as an equivalent copper sink. This is crucial for many designs: portable electronics, aerospace, automotive, and even rack-mounted servers all benefit from lighter cooling components. A lighter heatsink puts less mechanical stress on circuit boards and enclosures, and it’s easier to handle and ship. Because aluminum is so light, designers often allocate that weight “savings” to adding more fins or a larger heatsink volume, which greatly boosts convective cooling area. In effect, the low density of aluminum often allows an aluminum heatsink to match or even exceed the cooling capacity of a heavier copper sink while keeping total weight low.

Material Cost Benefits

Aluminum is far cheaper than copper as a raw material. Commodity prices (and manufacturer quotes) routinely show copper costing several times more per kilogram than aluminum. For example, material cost today (August 27, 2025) lists aluminum at about $2,940/metric ton vs copper at $11,090/ton, roughly a 1:3.78 cost ratio. It is very clear: copper is several times more expensive by weight. Since heatsinks can use large volumes of metal (especially extruded or cast parts), choosing aluminum can cut material costs dramatically. For high-volume products, even a small per-unit savings adds up to major savings. One extrusion manufacturer emphasizes that “significant cost savings can be had by producing heatsinks through aluminum extrusion” and notes that most commercial heatsinks are made this way. In short, the low price and abundance of aluminum help keep production costs down while meeting performance goals.

Manufacturing and Fin Design

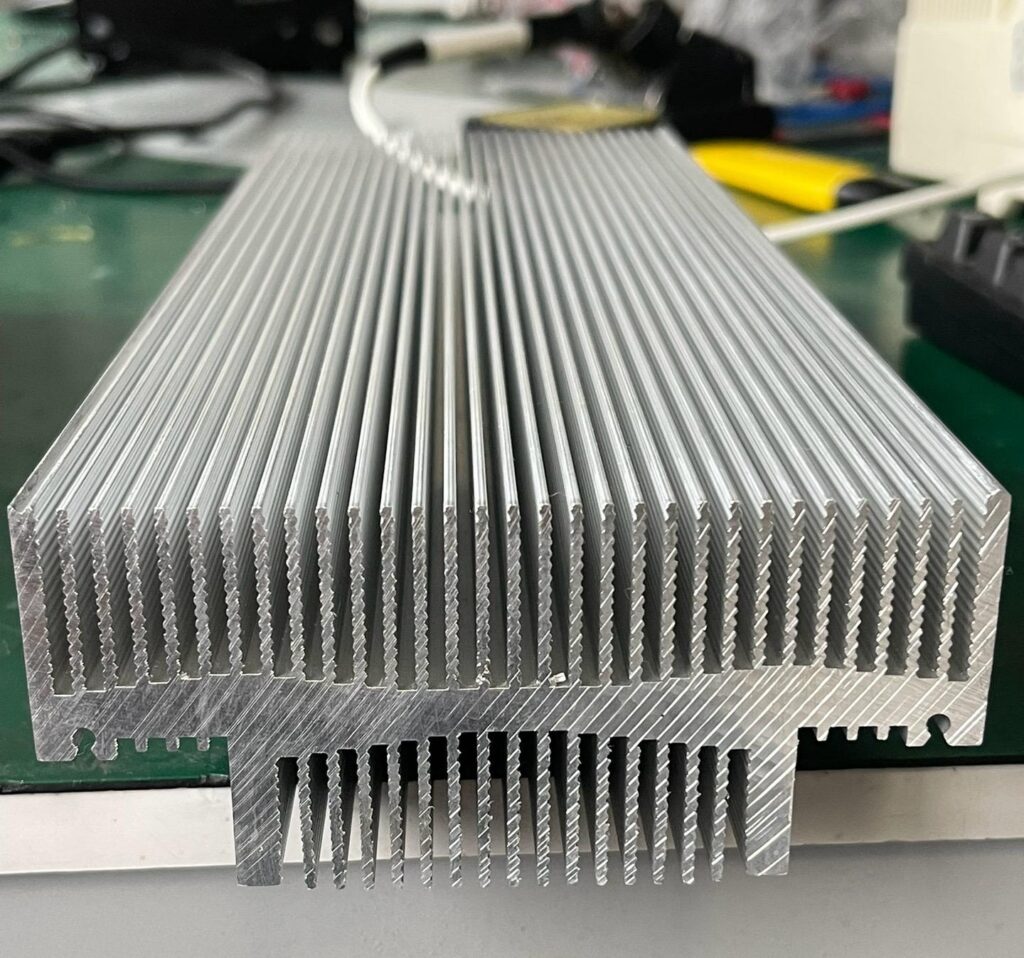

Aluminum’s formability is a major advantage. Its relatively low melting point and excellent malleability allow it to be extruded, cast, machined, or stamped into complex heatsink shapes. For example, aluminum profiles can be extruded with intricate fin patterns and then cut to length. The photo above shows an extruded aluminum heatsink with tall vertical fins – a geometry easily produced in aluminum. Industry experts note that aluminum can be “easily extruded and cast into complex shapes,” enabling very elaborate fin structures. This capability lets manufacturers pack a heatsink with many thin fins or custom shapes to maximize surface area. Importantly, aluminum extrusions can be made in long lengths and high volumes very inexpensively – far cheaper than machining an equivalent copper block. In one quotation, aluminum extrusion was explicitly cited as the usual low-cost method for heatsinks.

Another example above shows densely packed horizontal fins on an aluminum profile. Such fine fin spacing is feasible with aluminum extrusion at modest cost. Each additional fin greatly increases cooling area without adding much weight. (Achieving that same geometry in copper would require heavy machining or bonding, at much higher cost.) In fact, aluminum is rated “Excellent” for machinability while copper is only “Good”. One company reports that copper requires about 30% more machining time and even special cutting tools, whereas aluminum extrudes about 40% faster. These factors let aluminum sinks be produced with tight tolerances and complex features (like integrated mounting clips or heat-pipe mounting holes) far more economically than copper.

Corrosion Resistance and Durability

Aluminum also naturally forms a protective oxide layer that resists corrosion. Exposed aluminum surfaces develop a thin film of aluminum oxide almost immediately, and this film actually protects the metal underneath. Heatsinks are often anodized – an electrochemical thickening of the oxide – to further increase hardness and corrosion resistance. In humid or corrosive environments, anodized aluminum sinks maintain their integrity and thermal contact over time. One thermal design guide notes that after anodizing “a hard oxide film can be formed on the aluminum surface to further improve its corrosion resistance and wear resistance”. By contrast, bare copper surfaces can tarnish or form green copper oxide under some conditions, which may reduce performance if not cleaned. Thus aluminum sinks generally require little maintenance and have good long-term reliability with standard surface treatments.

Comparative Data: Aluminum vs. Copper

The table below summarizes key property differences between aluminum and copper that influence heatsink design:

These figures capture why aluminum is favored: it has very high conductivity (though lower than copper) and specific heat, but is far lighter and cheaper. For example, aluminum’s density and price advantage let designers trade off material volume for surface area. Many commercial guides observe that aluminum heatsinks provide nearly the same practical performance at a fraction of the weight and cost of copper ones.

Case Study: Replacing Copper with Aluminum

A practical example highlights these trade-offs. We had a custom copper heatsink cooling four high-power chips on a PCB (total dissipated power ~270 W). Concerned about lead time, weight, and cost, they asked if an aluminum solution could be used instead. Engineers designed an extruded aluminum heatsink with embedded copper heat pipes to spread the heat, and then compared it to the original copper design via simulation. The analysis showed the aluminum heat sink “nearly matched the thermal performance of the copper”. In detail, the average component temperatures were essentially the same (within ~0.5 °C on average), and the worst-case difference on any chip was only ~6–9 °C – well within acceptable margins.

Crucially, the aluminum version was far lighter and cheaper. As the ATS engineer explained, the aluminum+heat-pipe sink was about “three times lighter” than the original copper part, and the copper version was “again about three times as much” in cost. In other words, the new heatsink met the cooling requirements while weighing roughly one-third as much and costing roughly one-third per unit. Ultimately, the client was shown that the aluminum design delivered “nearly the same thermal performance … at much lower cost and weight”. This case study illustrates how, with proper design (adding fins or heat spreaders), aluminum can substitute for copper and satisfy strict thermal goals while cutting expenses.

If you’re looking to select the right heat sink for your project, this article ‘Choosing the Right Heat Sinks for Your Projects‘ can serve as a useful reference.

Optimizing the use of aluminum as a material for heat sinks

Aluminum’s combination of good conductivity, very low weight, low cost, and excellent formability make it the material of choice for most heatsinks. Its ~60% thermal conductivity of copper is usually acceptable because designers can compensate with more fin area or additional heat pipes. Meanwhile, the dramatic weight and cost savings unlock designs (especially in consumer and industrial electronics) that would be impractical with heavy, expensive copper sinks. Manufacturers routinely exploit aluminum’s strengths by extruding intricate fin patterns and anodizing the surface for durability.

In practice, copper heatsinks are now reserved for niche applications – for example, very high-power CPUs or lasers where every fraction of a degree matters. But for the vast majority of products, aluminum provides the best overall balance of thermal performance, manufacturability, and economics. In short, aluminum’s favorable thermal properties, weight-to-conductivity ratio, and ease of fabrication make it the go-to heatsink material for engineers and designers.
